JACK SCHEMATICS
80
JACKS AND PLUGS
PHONE: 773 792-2700
* Please visit the product pages on our website for the most up-to-date product information

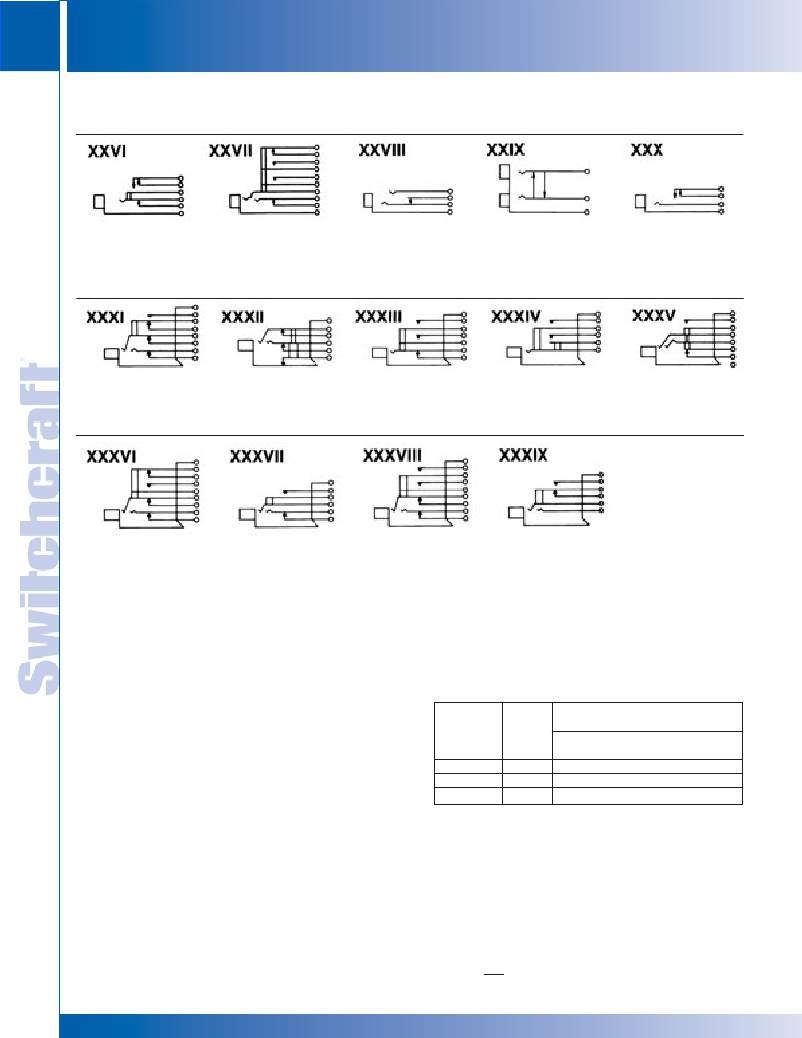

JACK SCHEMATICS
Single closed circuit.
Isolated switching–
“make” before “break”
circuit. (J4-1D).
Tip closed; ring open
circuits. Isolated
switching–two “make”
circuits and one “break”
Single open (tip)
circuit and single closed
(ring) circuit. (J9).
Double jack,
2-conductors on each
side. Tip circuits cross
shunted; common
Single open circuit–
“make” before
“break”. (J11).
circuit. (J10-2A-1B).
sleeve. (J12).
Tip closed; ring closed
circuits. Isolated
switching–“break”
Double closed circuit.
Separate sleeve
“break” circuit.
Single closed circuit.
Isolated switching–
Two “make” circuits.
Single open circuit.
Isolated switching–
Two “make” circuits.
Double open circuit.
Isolated switching–
One “make” and one
before “make” circuit.
“break” circuit.
Double closed circuit.
Isolated switching–
One “make” and one
“break” circuit.
Tip closed; ring open
circuits. Isolated
switching–One
“make” circuit.
Double closed circuit.
Isolated switching–
Two “make” circuits.
Double open circuit.
Isolated switching–
“break” before
“make” circuit.
WIRE-WRAPPING TERMINATIONS
Switchcraft can build complete Jack Panel Assemblies with
jacks, lamp jacks and switches with wire-wrapping terminals. If
desired, components with solder lugs and wire-wrapping
terminals can be installed in the same assembly.
WIRE-WRAPPING CONNECTIONS
Use the chart below as a guide to recommended tools to
be used with varying terminal thickness and wire gauges.
WIRE-WRAPPING TERMINAL DESIGN
Jack springs with integral wire-wrapping terminals are made of
special copper alloy for maximum work-life with excellent
resistance to corrosion. Shank of terminal accommodates a
maximum of three wire connections. Tini-Telephone ? phone
jacks, lamp jacks and switches with wire-wrapping terminals
have slightly higher stack due to greater spacing required for
Terminal
Thickness
(Inches)
.020 thru .032
.016
.016 thru .032
Wire
Gauge
22 & 24
24
26
Recommended Wire-Wrapping Tool
(Gardner-Denver Co. Part Numbers)
Use with 14B1-A Wrapping Tool
Wrapping Bit Sleeve
500131 18840
500131 18840
37006 17611-2
wrapping tool access. Actuator springs and ground lug
terminals are .704" long by .060" wide.
JACK MATING DATA
NOTE: See tables for jack/plug mating data
SPECIFYING NOTE: Due to assembly variations containing components
(solder lugs, wire-wrapping terminals, or both), these Jack Panel
Assemblies are available on special order only. Contact Switchcraft.
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
